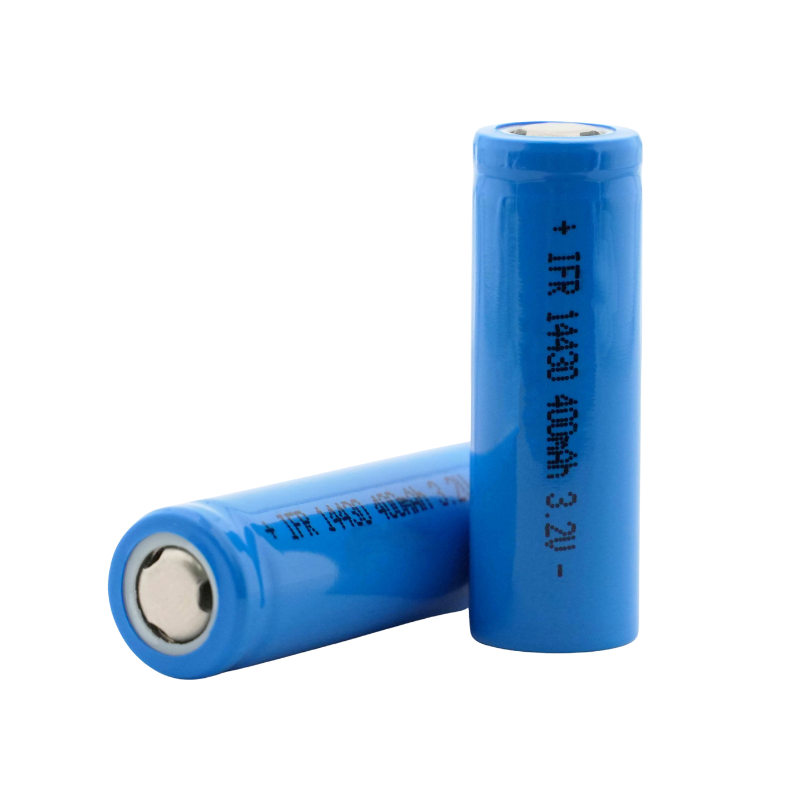

14430 3.2V 400mAh LiFePO4 Rechargeable Lithium ion Battery Cell IFR14430

1.Quality Rechargeable LiFePO4 Cell IFR14430
2.Model: IFR14430
3.Nominale spanning: 3.2V
4.Nominale capaciteit: 400mAh
5.Gemaakt in China

Beschrijving

1. Type: Cylindrical LFP rechargeable lithium ion battery

2. Dimensie

Φ=14.1±0.2mm

H=43.6±0.5mm

3. Nominale capaciteit: 400mAh
4. Miniumu Capacity: 370mAh

5. Nominale spanning: 3.2V
6. Limited Charging Voltage: 3.65V
7. Standaard laadstroom: 80mA
8. Max. Charging Current: 400A
9. Standaard ontladingsstroom: 80mA
10. Max Continuous Discharge Current: 1200mA
11. Recommended Charging Conditions: 0.2C CC to 3.65V, then CV to ≤0.01C

12. Gewicht: Approximately 15g

13. Interne weerstand: ≤60mΩ

14. Temperatuur

Aanval: 0~+45°C

Afvoer: -20~+60°C

Opslag: -20~45°C (1 maand)
-20~+35°C (3 maanden)
-20~+25°C (6 maanden)

Veiligheidstips/waarschuwing voor de batterij

1. Do not incinerate;

2. Do not disassemble;

3. Do not short positive and negative contacts;

4. Do not expose to heat;

5. Do not completely discharge;
