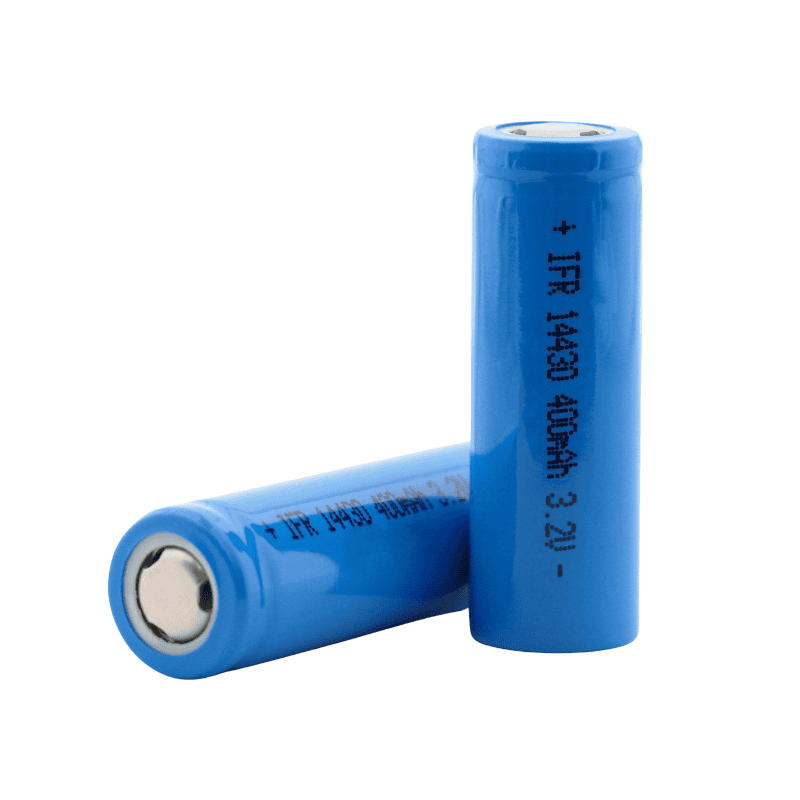

14430 3.2V 400mAh LiFePO4 Rechargeable Lithium ion Battery Cell IFR14430

1.Quality Rechargeable LiFePO4 Cell IFR14430
2.Model: IFR14430
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 400mAh
5.Made in China

Description

1. Type: Cylindrical LFP rechargeable lithium ion battery

2. Dimension

Φ=14.1±0.2mm

H=43.6±0.5mm

3. Nominal Capacity: 400mAh
4. Miniumu Capacity: 370mAh

5. Nominal Voltage: 3.2V
6. Limited Charging Voltage: 3.65V
7. Standard Charging Current: 80mA
8. Max. Charging Current: 400A
9. Standard Discharge Current: 80mA
10. Max Continuous Discharge Current: 1200mA
11. Recommended Charging Conditions: 0.2C CC to 3.65V, then CV to ≤0.01C

12. Weight: Approximately 15g

13. Internal Resistance: ≤60mΩ

14. Temperature

Charge: 0~+45°C

Discharge: -20~+60°C

Storage: -20~45°C (1 month)
-20~+35°C (3 months)
-20~+25°C (6 months)

Battery Safety Tips/Caution

1. Do not incinerate;

2. Do not disassemble;

3. Do not short positive and negative contacts;

4. Do not expose to heat;

5. Do not completely discharge;
