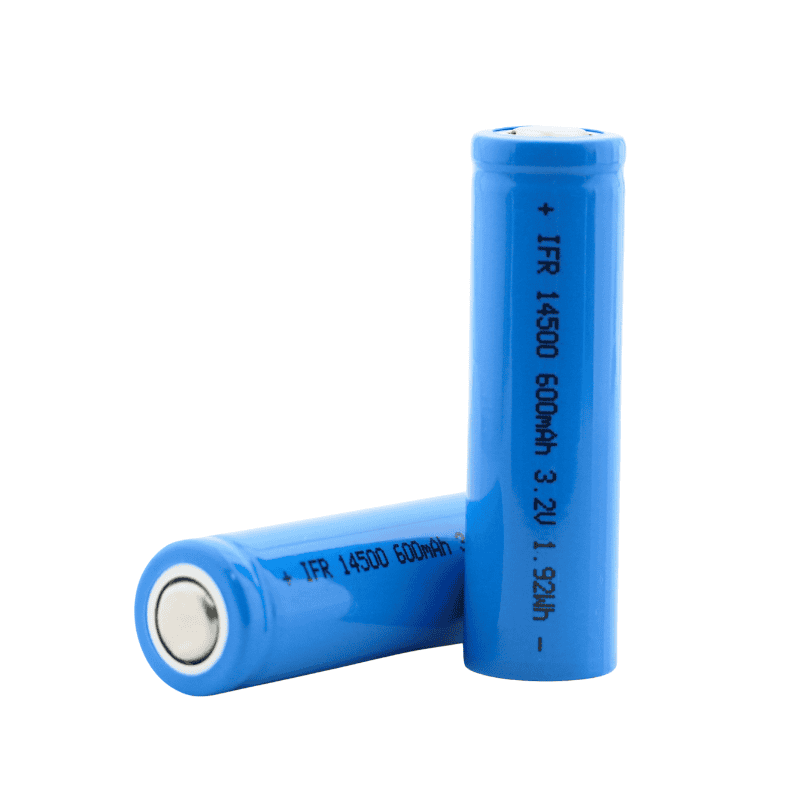

14500 3.2V 600mAh LiFePO4 Rechargeable Lithium ion Battery Cell IFR14500

1.Quality Rechargeable LiFePO4 Cell IFR14500
2.Model: IFR14500
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 600mAh
5.Made in China

Description

1. Type: Cylindrical LFP rechargeable lithium ion battery

2. Dimension

Φ=14.2±0.2mm

H=50±0.5mm

3. Nominal Capacity: 600mAh
4. Minimum Capacity: 590mAh

4. Nominal Voltage: 3.2V
5. Limited Charging Voltage: 3.65V

6. Recommended Charging Conditions: 0.2C CC to 3.65V, then CV to ≤0.01C
7. Standard Charging Current: 120mAh
8. Max. Charging Current: 600mAh
9. Standard Discharge Current: 120mAh

10. Max. Discharge Current: 600mA
11. Cycle Life: 1800cycles [Capacity≥80%]

12. Weight: Approximately 18g

13. Internal Resistance: ≤80mΩ

14. Temperature

Charge: 0~+60°C

Discharge: -20~+60°C

Storage: 0~+35°C (1 month)
0~+30°C (3 months)
0~+25°C (1 year)

Battery Safety Tips/Caution

1. Do not incinerate;

2. Do not disassemble;

3. Do not short positive and negative contacts;

4. Do not expose to heat;

5. Do not completely discharge;

6. Do not use force to install a li-ion battery;

7. Use only high quality battery charger;

8. Charge fully before first use;

9. Store in cold and dry place at approximately nominal voltage.
