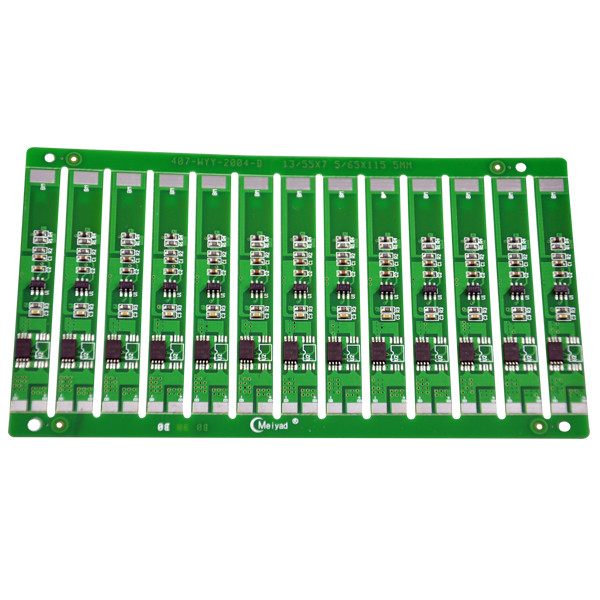

2S PCB/PCM for 2 series li-ion battery pack 2S-2004-1MOS

1. Model: 2S-2004-1MOS
2. PCB Size: (L)55 * (W)7.5 *(δ) 0.6mm
3. Overcharge detection voltage(VCU): 4.35±0.05V
4. Overcharge detection delay time: 1.0±0.5mS
5. Over discharge detection voltage: 2.3±0.1V
6. Over discharge detection delay time: 1.0±0.5ms
7. Over current detection voltage: 0.30±0.015V
8. Over current detection current: 3-5 A
9. Detection delay time: 1.0s
10. Release condition: Cut load
11. Detection conditionp: Exterior short circuit
12. Detection delay time: 10ms
13. Release condition: Remove the Load
14. Normal mode: 10uA
