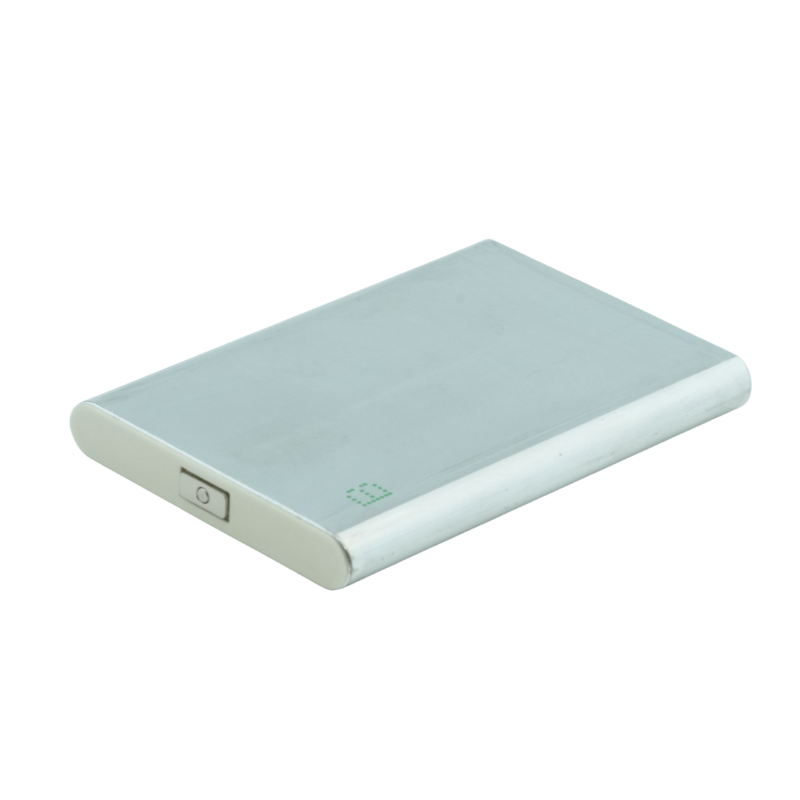

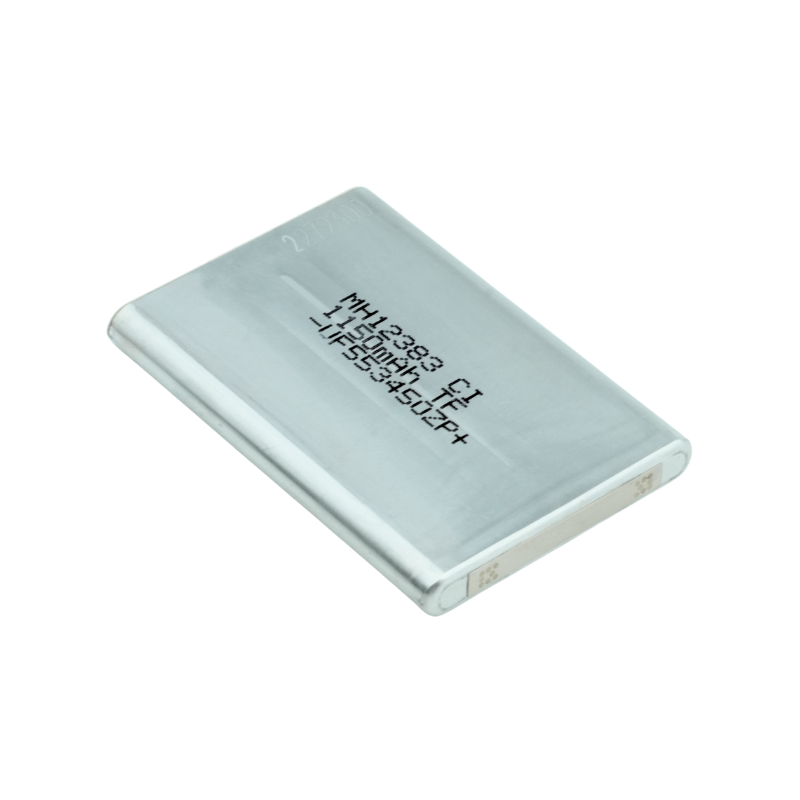

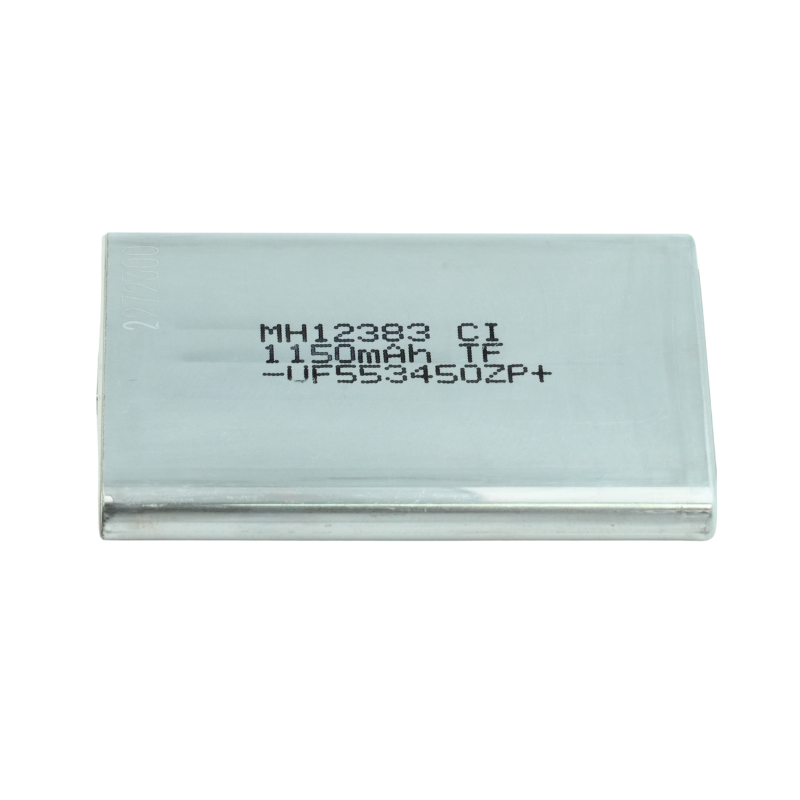

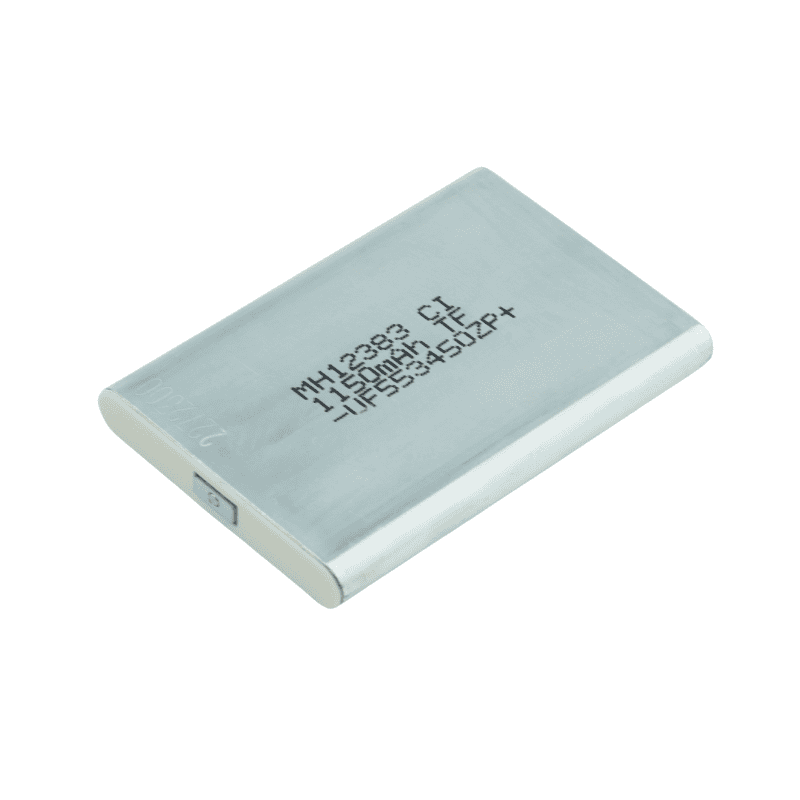

553450 Sanyo UF553450ZP prismatic lithium ion battery 3.7V 1200mAh

1.Quality Prismatic Lithium-ion Rechargeable Battery
2.Brand: Sanyo
3.Size: 553450
4.Model: UF553450ZP
5.Nominal Voltage: 3.7V
6.Nominal Capacity (typ.): 1200mAh

Description

1. Nominal Capacity (min.): 1150mAh

2. Nominal Capacity (typ.): 1200mAh

3. Nominal Voltage: 3.7V

4. Discharging End Voltage: 2.5V

5. Charging Voltage: 4.2V
6. Charging Method: CC-CV
7. Std. Charging Current: 1150mA

8. Std. Charging Time: 2.5 hours

9. Approx. Weight (max.): 22.3g

10. Thickness*Width*Height (without tube): 5.55mm*33.85mm*49.8mm

11. Temperature
charging: 0 to +40℃
Discharge：-20℃ to +60℃
Storage: -20℃ to +50℃

Battery Safety Tips/Caution

Please full charge battery before first use.
Battery positive terminal may be hot when charging, please do not touch it.
Do not short circuit, please keep it away from loose change and metal objects.
Do not immerse battery in any liquid/water.
Do not place the battery in direct sunlight or heat, be away from fire.
Do not crush, hit, impact, damage, disassemble, or modify the battery.
Do not reverse the positive (+) and negative (-) terminals when charging or using the battery.
Immediately stop using if battery has abnormalities, such as smell, heat, discoloration, or deformity.
On (battery electrolytes) exposure, rinse immediately with water, and seek medical treatment.
Keep the battery away from children or pets.
