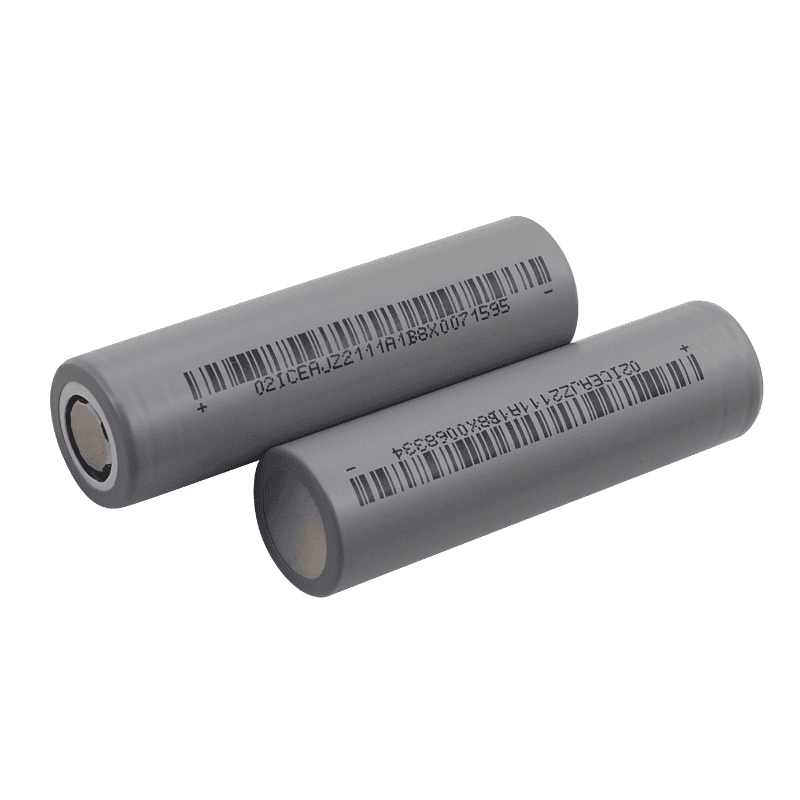

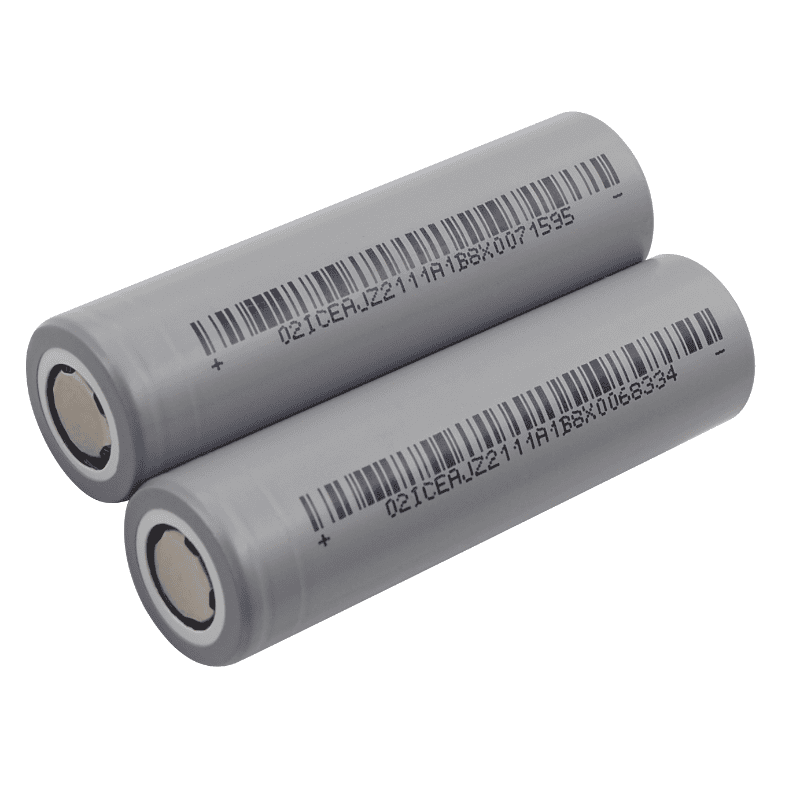

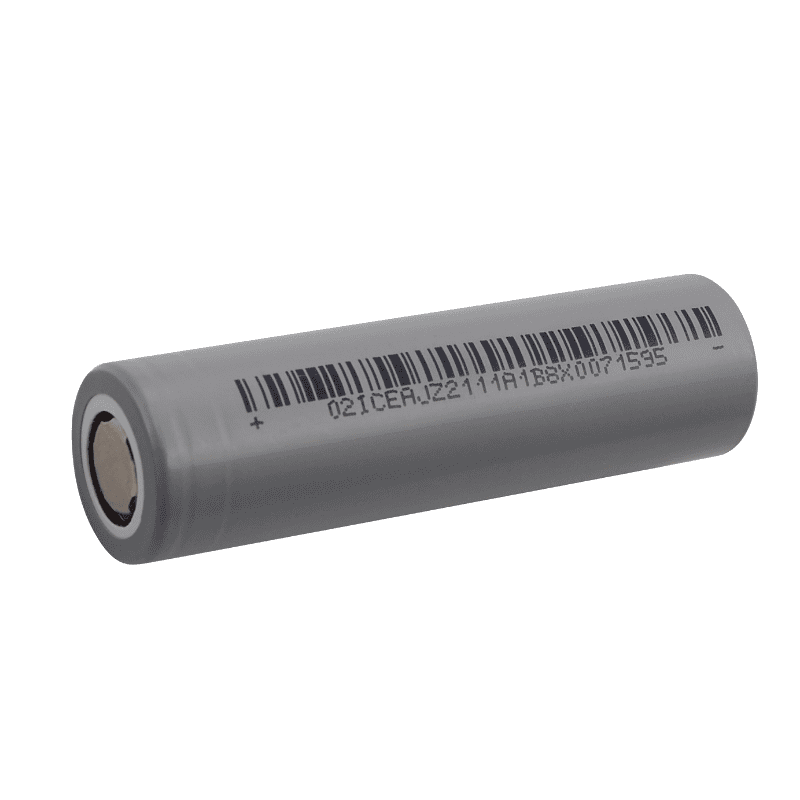

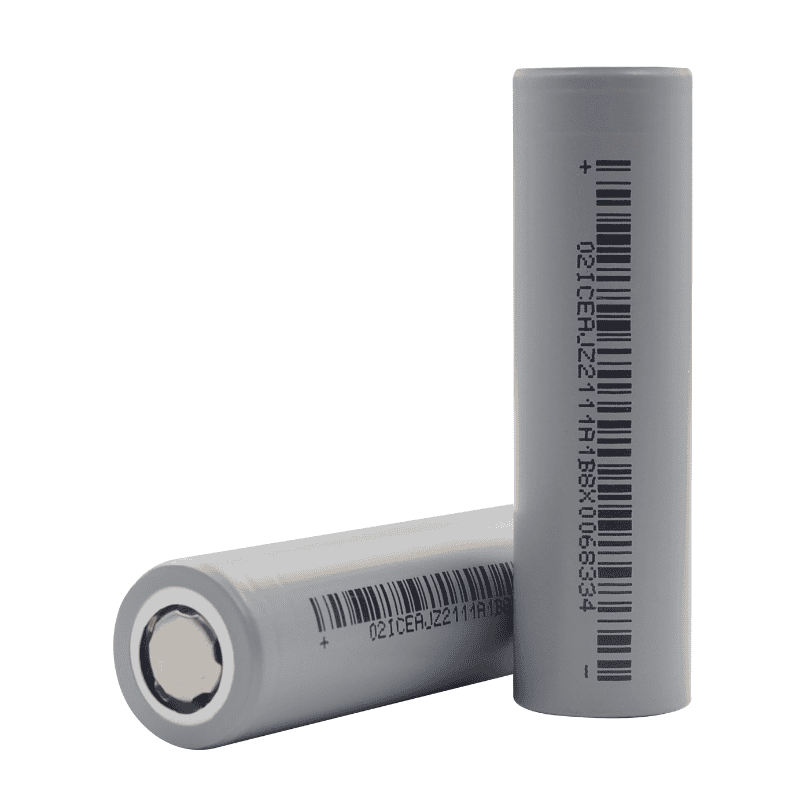

18650 3.6V 3200mAh DLG INR18650-320 Li-ion Battery Cell

18650 3.6V 3200mah DLG INR18650-320 Li-ion Rechargeable Battery Cell

* Model Name: 18650 Bare Cell (Unprotected)
* Part No.: DLG INR18650-320
* Maximum Size: (D）18.6*（L）65.0mm（±0.2mm）
* Nominal Voltage: 3.6/3.7V
* Nominal Capacity: 3200mAh
* Cell made in China
* Weight (Max.): 47g
* Continuous Maximum Discharge Current: 6.4A
* Customize Battery Pack accept

Description

1. 18650 Li-ion Rechargeable Battery Cell DLG INR18650-320
2. Typical Capacity: 3200mAh (Min. Capacity: 3000mAh)
3. Nominal Voltage: 3.6V/3.7V
4. Charging Method: CC-CV
5. 4.2 volts max voltage and 2.5 volts cut-off voltage
6. Charging Voltage: 4.20±0.03V
7. Standard. Charge Current: 1.6A
8. Standard Charging Time: 2.5 hours
9. Standard Discharging Current: 640mA
10. Continuous Maximum Discharge Current: 6400mA
11. Temperature
Charge: 0 to +45° C
Discharge: -20 to +60° C
12. Customize option: Top (Button/Flat), Battery Pack, Private label, Packing…

Battery Safety Tips/Caution

Please fully charge the battery before first use.
The battery’s positive terminal may become hot during charging. Please do not touch it.
Do not short circuit. Please keep it away from loose change and metal objects.
Do not immerse battery in any liquid, including water.
Do not expose the battery to direct sunlight or high temperature. Keep it away from fire.
Do not crush, puncture, disassemble, or modify the battery.
Do not reverse the positive (+) and negative (-) terminals when charging or using the battery.
Immediately stop using if battery if it has abnormalities, such as unusual smell, overheating, discoloration, or deformation.
On exposure to battery electrolytes, rinse immediately with water and seek medical treatment.
Keep the battery away from children and pets.
